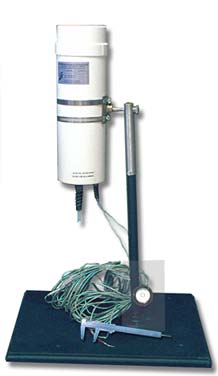

RGS-100
SIPHONING RAIN
GAUGE
 |
• PROVEN TECHNOLOGY
REPLACES TIPPING BUCKET
• EXTREMELY ACCURATE from 0 to 300 mm/hr.(0-11.8"/hr.)
• AUTOMATIC INSTANTANEOUS COLLECTION & RESPONSE
• O/P = 1 MOMENTARY SWITCH CLOSURE FOR EVERY 0.2 mm OR 0.01"of
RAIN (optional O/P calibrated in mm or inches).
•
O/P INTERFACES WITH ANY DATA LOGGER
•
LIFETIME CALIBRATION
• NO
MOVING PARTS
•
WILL NOT CORRODE
•
LIGHTWEIGHT & DURABLE
• 2 YEAR WARRANTY ON RAIN GAUGE
• 1 YEAR WARRANTY ON ELECTRONICS
|
|
OUR
#1 PRIORITY IS THE END USER |
rSPECIFICATIONS |
|
|
| Flow rate: |
0-300 mm/hr
0 - 11.8 inches/hour |
| Capacity: |
Unlimited |
| Accuracy: |
RATE: 0 - 200 mm/hr ; +/- 2%
RATE: 200 - 300 mm/hr; +/- 5% |
| Power Supply: |
9 to 18 volts, UNREGULATED
0.35 to 1.2 micro-amps |
| Output: |
1 momentary switch closure
per 0.2mm (or 0.01") of rain |
Operating Temperature:
|
0 to 65 degrees Celsius, 32 to 150 degrees F |
| Storage Temperature: |
-40 to 70 degrees C,
-40 to 174 degrees F |
| |
|
Physical
Dimensions
|
| Weight: |
2 kg (5 lbs) |
| Funnel Diameter: |
112 mm (4.425 in) |
| Diameter: |
120 mm (4.75 in.) |
| Length: |
420 mm (16.5 in.) |
| Construction: |
High density plastics |
| Mounting: |
Aluminum
& stainless steel universal joint bracket
|
| Screen: |
Keeps debris out |
| Level: |
Used to level the RGS - 100 |
| |
|
Options
|
| Heater: |
12 Vdc |
| Output Connector: |
Customers choice to fit their Data Loggers |
|
|
THEORY OF OPERATION:
The RGS - 100 has no moving parts, so it NEVER needs routine calibration.
Its revolutionary patented design enables it to make accurate measurements
from 0 mm to 300 mm (0 " to 11.8") of rainfall per hour.

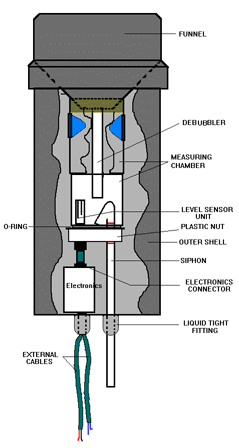

The principle is simple. Water, collected by the funnel, is routed to the
measuring chamber. A solid-state level sensor, connected to an electronic
circuit, outputs a contact closure for every 0.2 mm (or 0.01" depending
on calibration). When 1.2 mm (or 0.06") of water is collected, it is
siphoned out on to the ground. The process repeats indefinitely. The siphoning
action takes approximately 1 second. The electronics
filters out false readings, therefore the gauge is very precise. The RGS - 100 can be
connected to the "contact closure" input of any weather recorder.
|
